Endress+Hauser DK9WS-AA Prosonic Flow W, flow sensor set

Özelliklere genel bakış

• Max. measurement error

  Volume flow:
  ±3% o.r. for DN15
  ±2% o.r. for DN25 to 200
  ±2% o.r. above DN200

• Measuring range

  0.3 to 10 m/s (1 to 33 ft/s)

• Medium temperature range

  -20 to +80°C (-4 to +176 °F)
  0 to +130°C (32 to +265 °F) option

• Max. process pressure

  N/A

• Wetted materials

  Clamp on system:
  Sensor holder 1.4308/CF-8
  Sensor housing 1.4301/304
  Strapping bands 1.4301/304

• Tüm özelliklere bak

Uygulama alanı

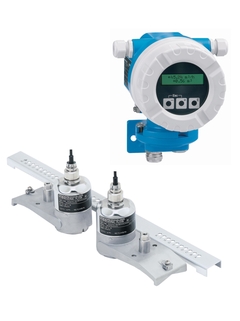

The Prosonic Flow W clamp-on sensor is specially designed for water and wastewater applications. Combined with the cost-effective Prosonic Flow 91 transmitter with push buttons, Prosonic Flow 91W is ideally suited for flow monitoring in the water industry.

• The measuring principle is independent of pressure, density, temperature, conductivity and viscosity

• Clamp-on flow measurement of process water, salt water, deminerialized water, drinking & wastewater.

Device properties:

• Medium temperature: –20 to +80 °C (-4 to +176 °F)

• Degree of protection IP68 (Type 6P enclosure) for pipes under water

• Shock and vibration resistance according to IEC 68-2-6

• Aluminium field transmitter housing

• 2-line display with push buttons

• HART

•
